About

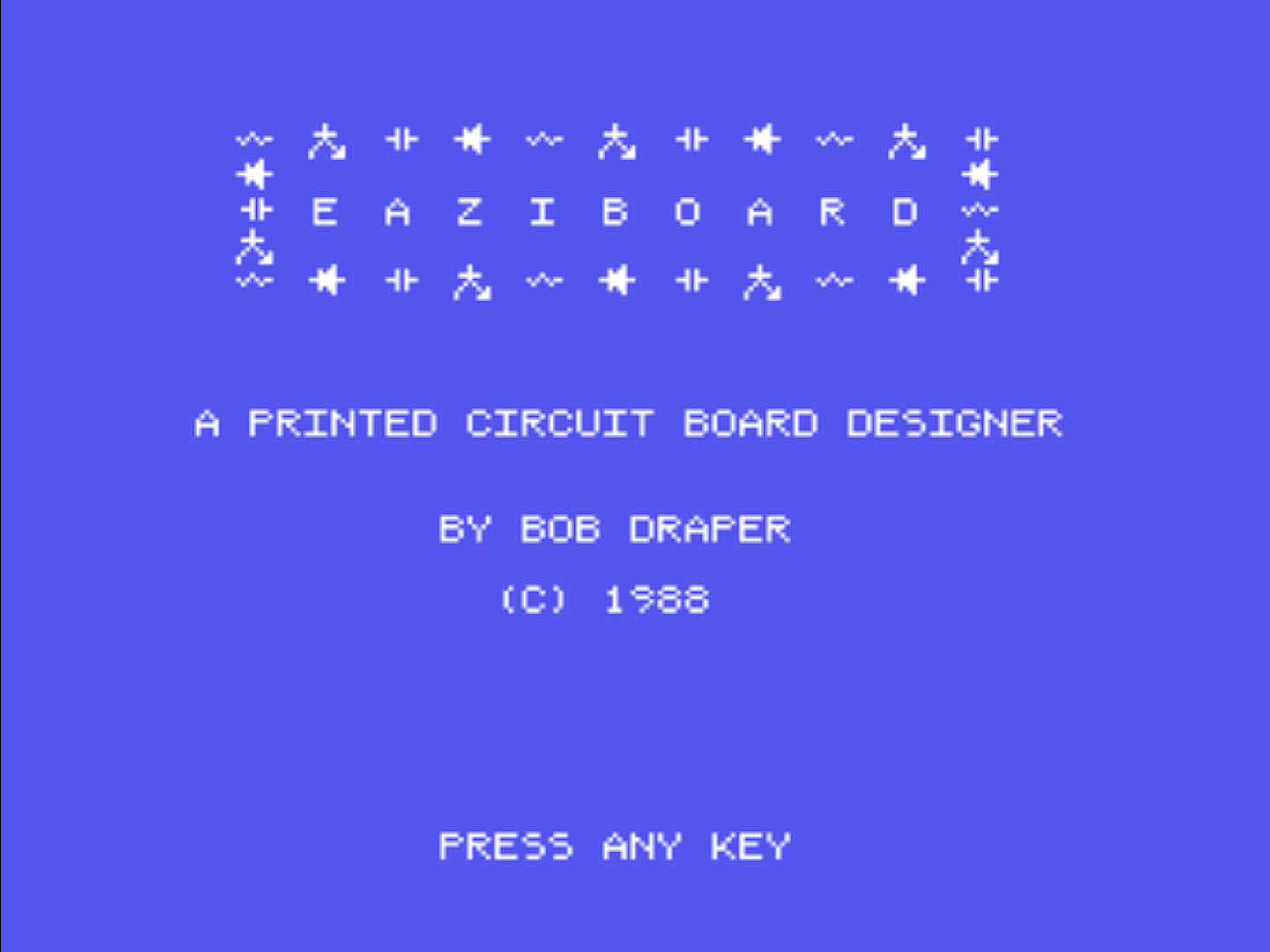

Despite its file name, Eazidraw is not a painting program. When it starts it calls itself EAZIBOARD, a printed circuit board designer, by Bob Draper, (C) 1988. You lay out a board on screen, with chip footprints, pads, copper tracks and component labels on two sides, and print it out. The disc includes a finished demonstration board, DEMO.PCB.
Our guide Circuit Boards with Eazidraw takes you from a blank board to a printout.
Files on the Disc
| File | Size |
|---|---|
DEMO.PCB | 23,168 bytes |
EAZIDRAW.COM | 11,520 bytes |
Gallery
No items found.
Publisher
Supasoft
Read about the publisher ➔
