80 Column Display Circuit Diagram
Circuit schematic for the Tatung Einstein 80 Column Monochrome Display Card showing RAM, address decoding, logic gates, and video output components.
Hardware Schematics
Tatung (U.K.) Ltd
1985
Tatung Einstein Hardware Diagrams

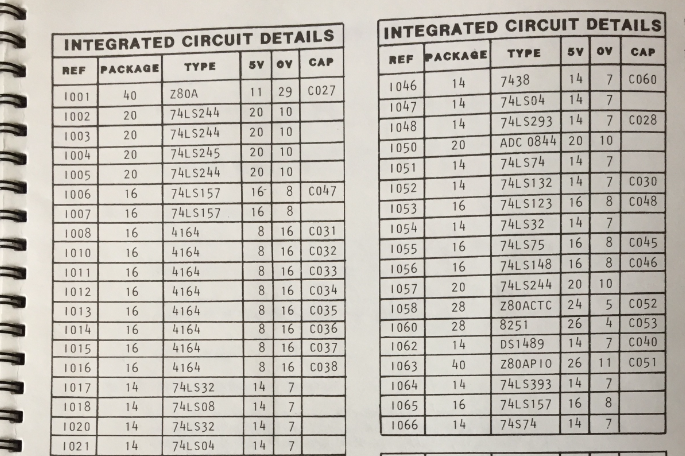

Contains complete Tatung Einstein hardware schematics, circuit details, I/O maps, and interconnection layouts for the system’s CPU, video, sound, and peripherals.
Hardware Schematics
Tatung (U.K.) Ltd
1985
